Fiber Laser Marking Machines Manufacturer

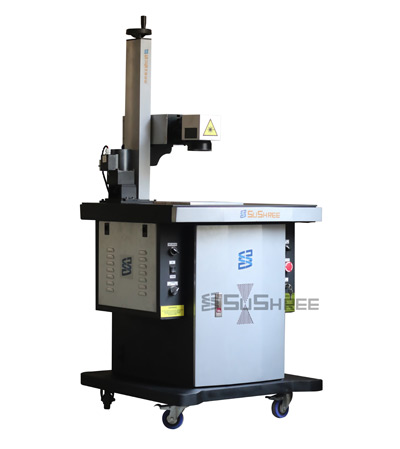

The SL-F Series is a fully integrated, compact Fiber Laser Marking System designed with a Class 4 safety enclosure for high-speed, precise, and consistent marking applications. It delivers crisp and permanent marking on a wide range of metals and selected non-metal
materials, suitable for both flat and rotary components.
The system is equipped with a pulsed Fiber Laser source based on advanced Master Oscillator Power Amplifier (MOPA) technology, ensuring superior reliability, flexibility, and performance. With the highest wall-plug efficiency in its class and virtually maintenance-free operation, the SL-F Series is engineered for long-term industrial use and maximum productivity.
The SL-F Series is ideal for Automotive, Aerospace, Electronics, Medical Devices, Tooling, and General Manufacturing Industries where speed, precision, and durability are critical. It delivers consistent industrial-grade performance while ensuring operational efficiency and long service life.
| PRODUCT SEPCIFICATIONS | |
|---|---|
| Parameter | Specification |
| Laser Type | Fiber Laser |
| Laser Power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm |
| Marking Area | 100x100 mm / 150x150 mm / 200x200 mm |
| Marking Speed | ≤ 8000 mm/s |
| Marking Depth | Up to 0.5 mm (material dependent) |
| Min. Line Width | 0.01 mm |
| Min. Character Size | 0.2 mm |
| Repeat Accuracy | ±0.01 mm |
| Cooling System | Air Cooling |
| Control Software | EZCAD |
Key Advantages of Fibre Laser Marker Machines / Systems:
Highest wall-plug efficiency compared to conventional laser technologies
Available power options up to 100W (CW and Pulsed configurations)
Superior beam quality (M² < 1.6) for fine and detailed marking
Laser source life exceeding 100,000 operating hours
High repetition rate for faster processing
Excellent stability and repeatability for consistent output
Maintenance-free design with 1-year unlimited usage warranty
Suitable for surface marking and deep laser engraving
QR code, barcode, serial number, and UID marking
Precision marking, color marking (MOPA-based), and micro-machining
Capable of specialized applications such as solar cell cutting
SYSTEM FEATURES
Utilizes advanced Fiber Laser technology integrated with a high-precision beam deflection (galvo scanning) unit
Capable of marking on nearly all metals and a wide range of non-metals
Compact, efficient, and robust design ensuring low cost of ownership
High beam quality (M² < 1.6) for high-resolution marking
Stable laser output for fast, sharp, and clear results across various materials
Integrated auto-height adjustment Z-axis system for ease of operation
Optional rotary axis attachment for cylindrical component marking
User-friendly laser marking software supporting text, logos, graphics, barcodes, QR codes, and complex designs
Suitable for micro-machining and precision die marking applications
Available in 20W, 30W, 50W, and 100W power configurations
Working area options ranging from 100 mm × 100 mm up to 300 mm × 300 mm
